- Pure Sine Wave Inverter Driver Board EGS002 EG8010+IR2110 Driver,5V single power,PWM carrier frequency 23.4KHzsupply.
- Description EGS002 is a driver board specific for single phase sinusoid inverter. It uses ASIC EG8010 as control chip and IR2110S as driver chip. The driver board integrates functions of voltage, current and temperature protection, LED warning indication and fan control.Jumper configures 50/60Hz AC output, soft start mode and dead time.
- EGS002 is a driver board specific for single phase sinusoid inverter. It uses ASIC EG8010 as. Control chip and IR2110S as driver chip. The driver board integrates functions of voltage, current. Temperature protection, LED warning indication and fan control.Jumper configures 50/60Hz AC. Output, soft start mode and dead time.
Mar 22, 2016 Re: testing the egs002 inverter board. « Reply #60 on: March 22, 2016, 04:39:02 pm ». The circuit you alluded to is a HF complete circuit. If you look at it you will see a 12v to 320v step up push pull converter to do the voltage lifting, and then they use the 002 to do the 50hz sine wave. The problem with these, is that all your energy.
Inverters, Modules, Power
- 5V single power supply
- 4 pin set of pure sine wave output frequency:
- 50Hz pure sine wave of fixed frequency of 60Hz pure sine wave of fixed frequency 0-100Hz
- pure sine wave frequency adjustable 0-400Hz pure sine wave frequency adjustable
- Unipolar and bipolar modulation
- 300nS dead time 500nS dead time 1.0uS dead time 1.5uS dead time
- External 12MHz crystal oscillator
- PWM carrier frequency 23.4KHz
- Voltage, current, real time temperature feedback
- Overvoltage, undervoltage, overcurrent and overheating protection
- Soft-start mode pin setting the response time of 1S
- Serial communication to set the output voltage, frequency and other parameters
- External Serial LCD Module 1602 displays the inverter
- voltage, frequency, temperature and current information
₨1,600
13 in stock
EGS002 EG8010 + IR2113 Pure Sine Wave Inverter SPWM Module Price in Pakistan
Introduction
EG8010 is a digital, function very well bring their own dead-time control of pure sine wave inverter generator chip, used in two-stage DC-DC-AC power conversion structure or single-stage DC-AC power frequency transformer Boost architecture, an external 12MHz crystal oscillator, to achieve high precision, and harmonic distortion is very small, 50Hz or 60Hz pure sine wave inverter ASIC. The chip uses CMOS technology, the internal integration of SPWM sine generator, dead time control circuit, the multiplier factor range, soft start circuit, protection circuit, RS232 serial communication interface and a serial LCD driver module 1602 functions.
- 5V single power supply
- 4 pin set of pure sine wave output frequency:
- 50Hz pure sine wave of fixed frequency of 60Hz pure sine wave of fixed frequency 0-100Hz
- pure sine wave frequency adjustable 0-400Hz pure sine wave frequency adjustable
- Unipolar and bipolar modulation
- Comes with deadband control, pin 4 dead time:
- 300nS dead time 500nS dead time 1.0uS dead time 1.5uS dead time
- External 12MHz crystal oscillator
- PWM carrier frequency 23.4KHz
- Voltage, current, real time temperature feedback
- Overvoltage, undervoltage, overcurrent and overheating protection
- Soft-start mode pin setting the response time of 1S
- Serial communication to set the output voltage, frequency and other parameters
- External Serial LCD Module 1602 displays the inverter
- voltage, frequency, temperature and current information
Applications

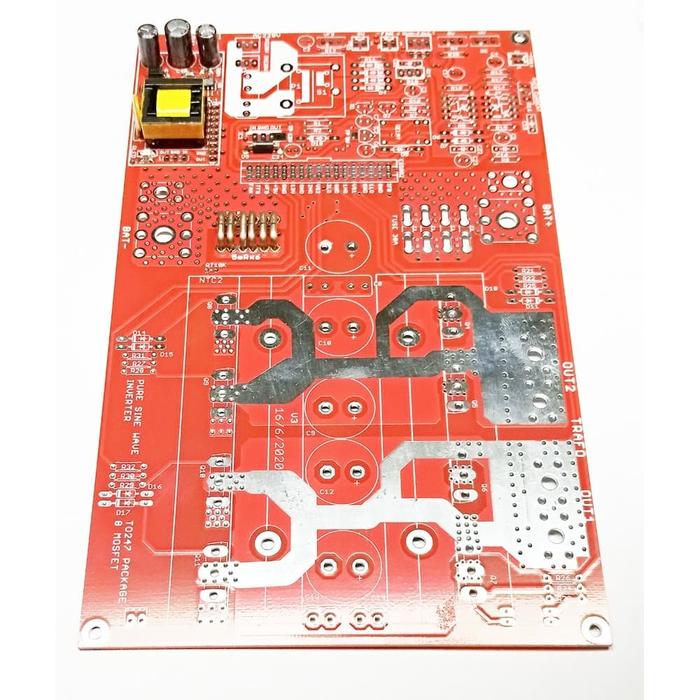

Skema Inverter Egs002 Charger
- Single phase pure sine wave inverter
- PV Inverter
- Wind power inverter
- Uninterruptible Power Supply UPS System
- Digital generator system
- IF power
- Single-phase motor speed controller
- Single-phase inverter
- Sine wave dimmer
- Sine wave regulator
Package Includes
Skema Inverter Egs002 Portable
- 1 x EGS002 EG8010 + IR2113 Pure Sine Wave Inverter SPWM Module
